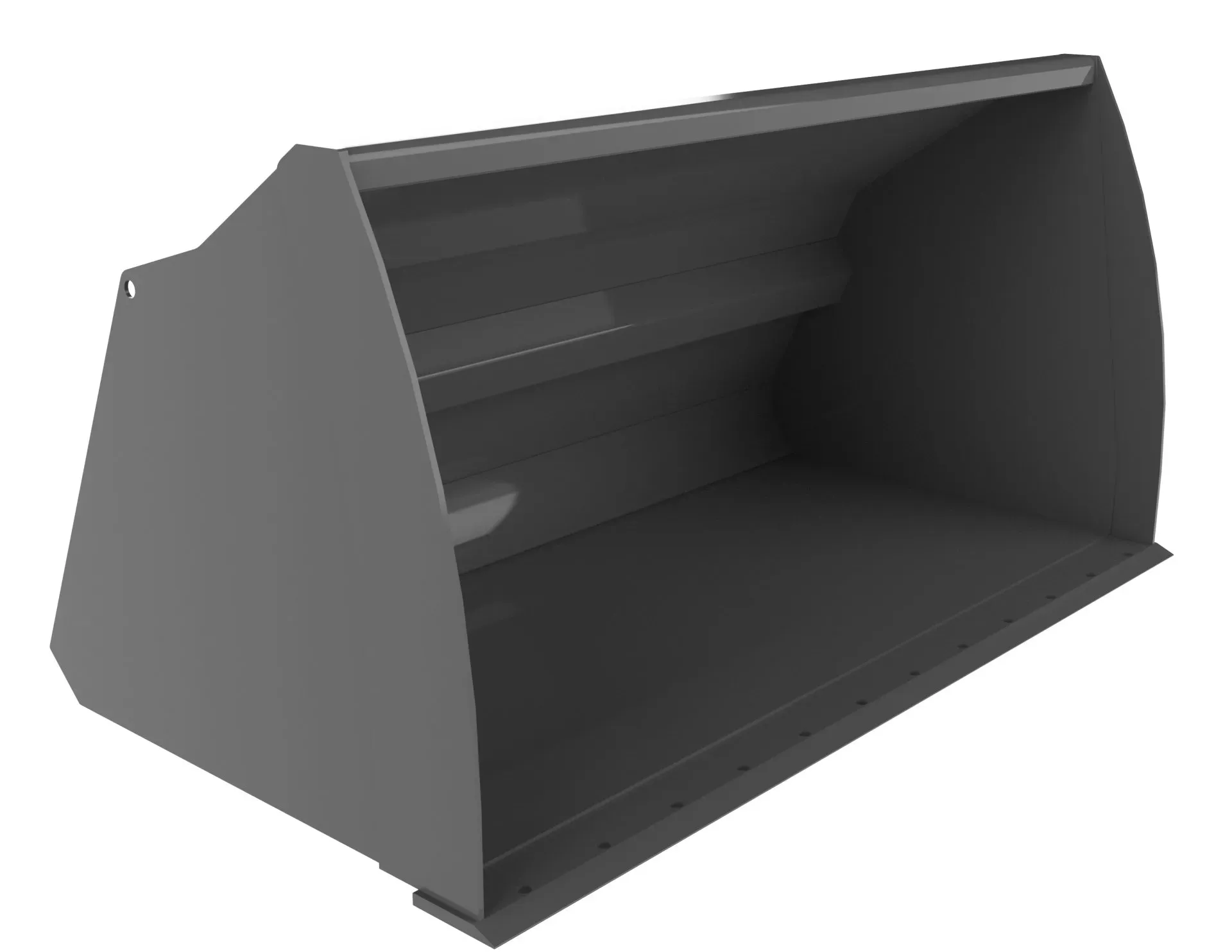

Compact Articulating

Loader Bucket

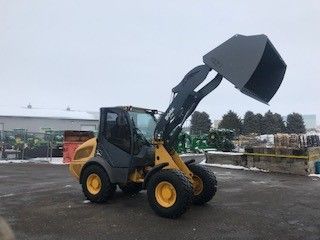

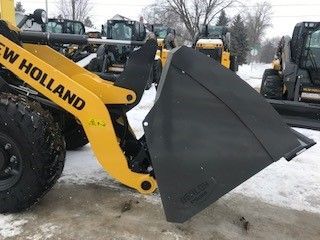

Berlon’s Compact Articulating Loader bucket is ideal for loading feed mixers and other heavy duty material handling equipment.


Common uses include: Feed, snow, dirt, gravel.

1/4” thick steel body

Reinforcement tube across back of bucket for added strength

3/4” x 6” weld-on cutting edge with holes

Bucket bottom includes 5 wear bars for durability

Radius kick-out plate top and bottom for added strength and easy clean out

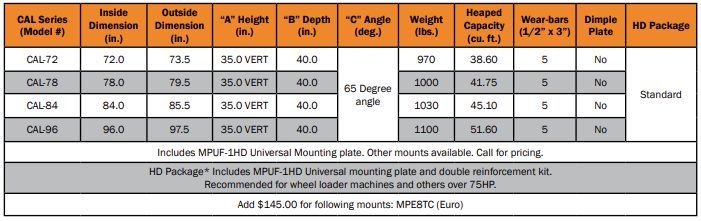

Specifications

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity

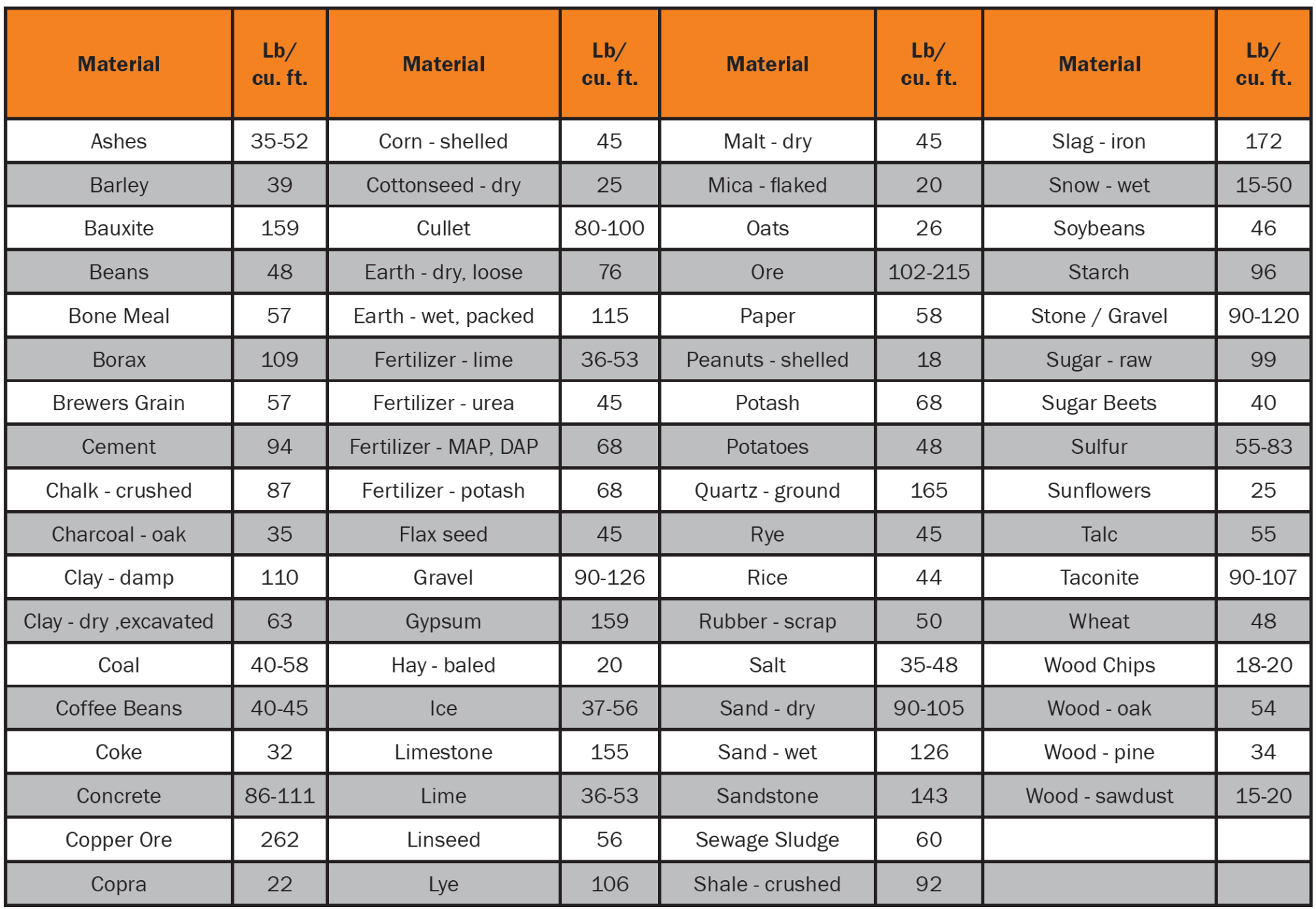

Material Weights
