FMX Series Bucket
Berlon’s FMX Series bucket is ideal for farm work, and extreme applications.
The deep floor provides increased cutting edge visibility. The back of this bucket also has a sharp edge for back-dragging, making clean-up easier.
Common uses include: Feed, manure, grading, landscaping, and higher horsepower machines.
3/16” thick steel body
Radius kick-out plate for added strength and easy clean-out
3/4” x 6” weld-on cutting edge with holes
Reinforcement tube across back of bucket for added strength
Options
Manufacturer's Limited Warranty

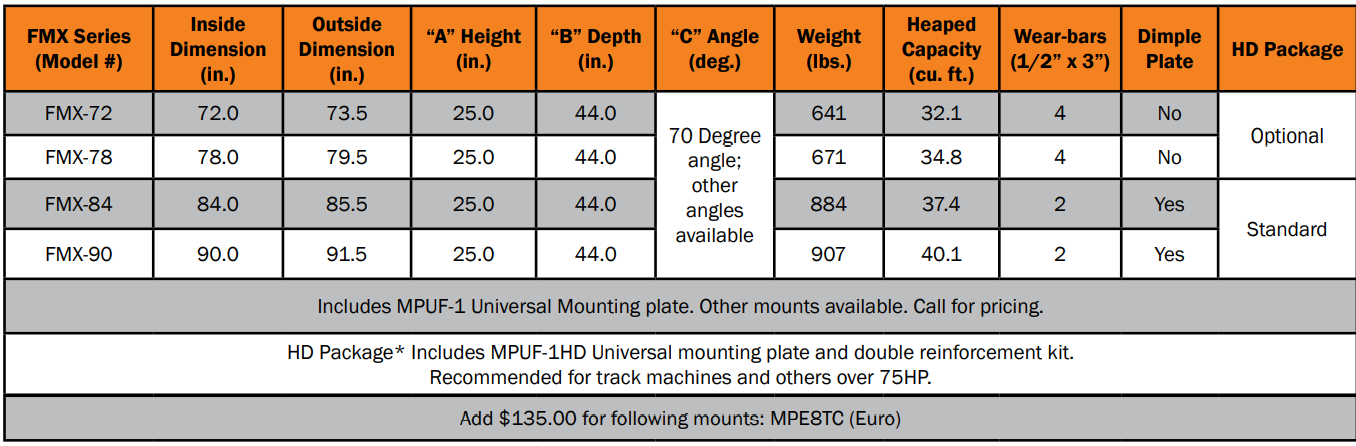

Specifications
How to Determine Bucket Capacity
The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.
To calculate cubic feet of a bucket:
1: Measure from the top of the bucket straight down to the bottom in inches = Height
2: Measure from the front of the floor to the back in inches = Depth
3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)
To calculate heaped capacity of a bucket:
For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity
For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
