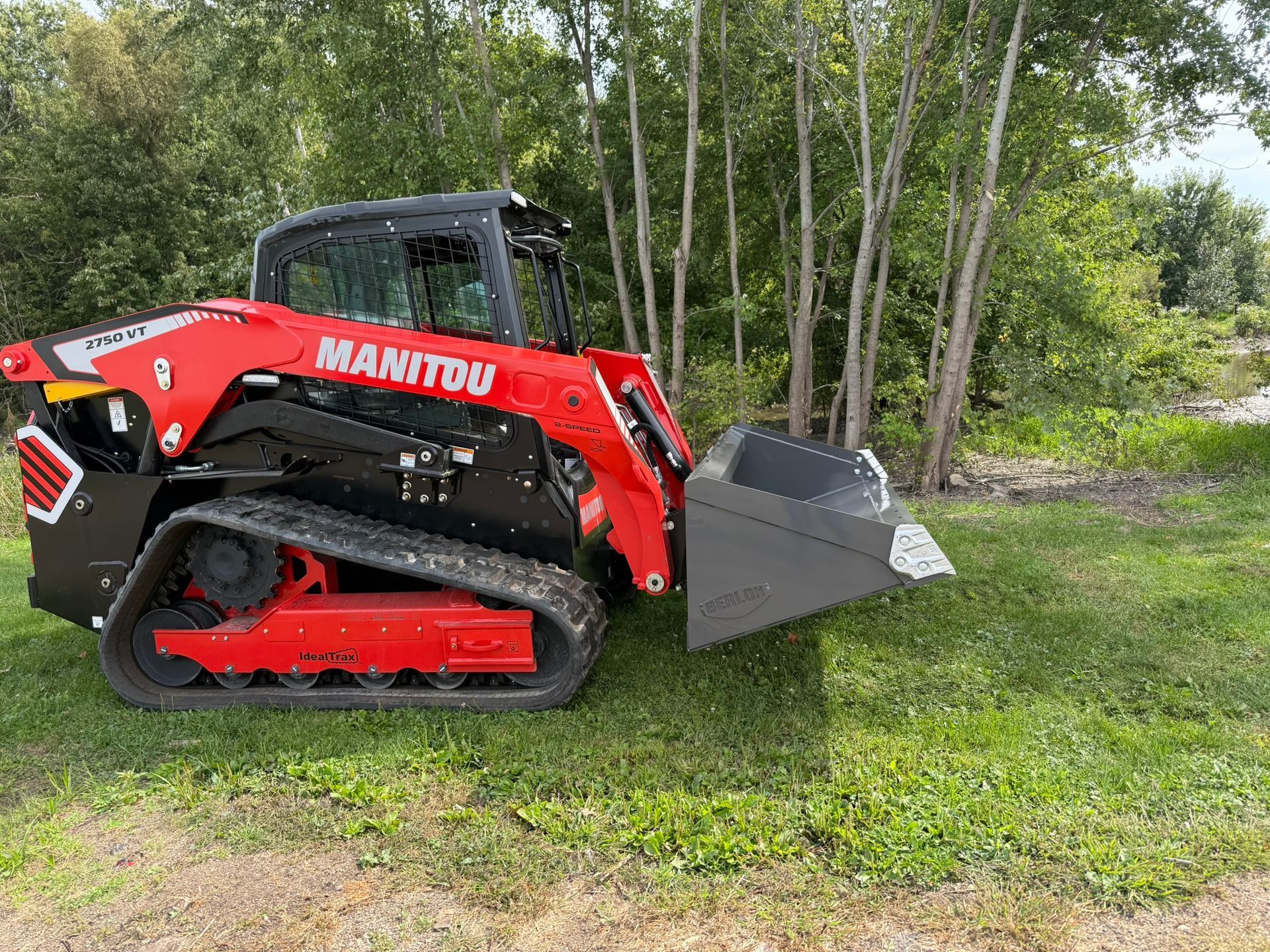

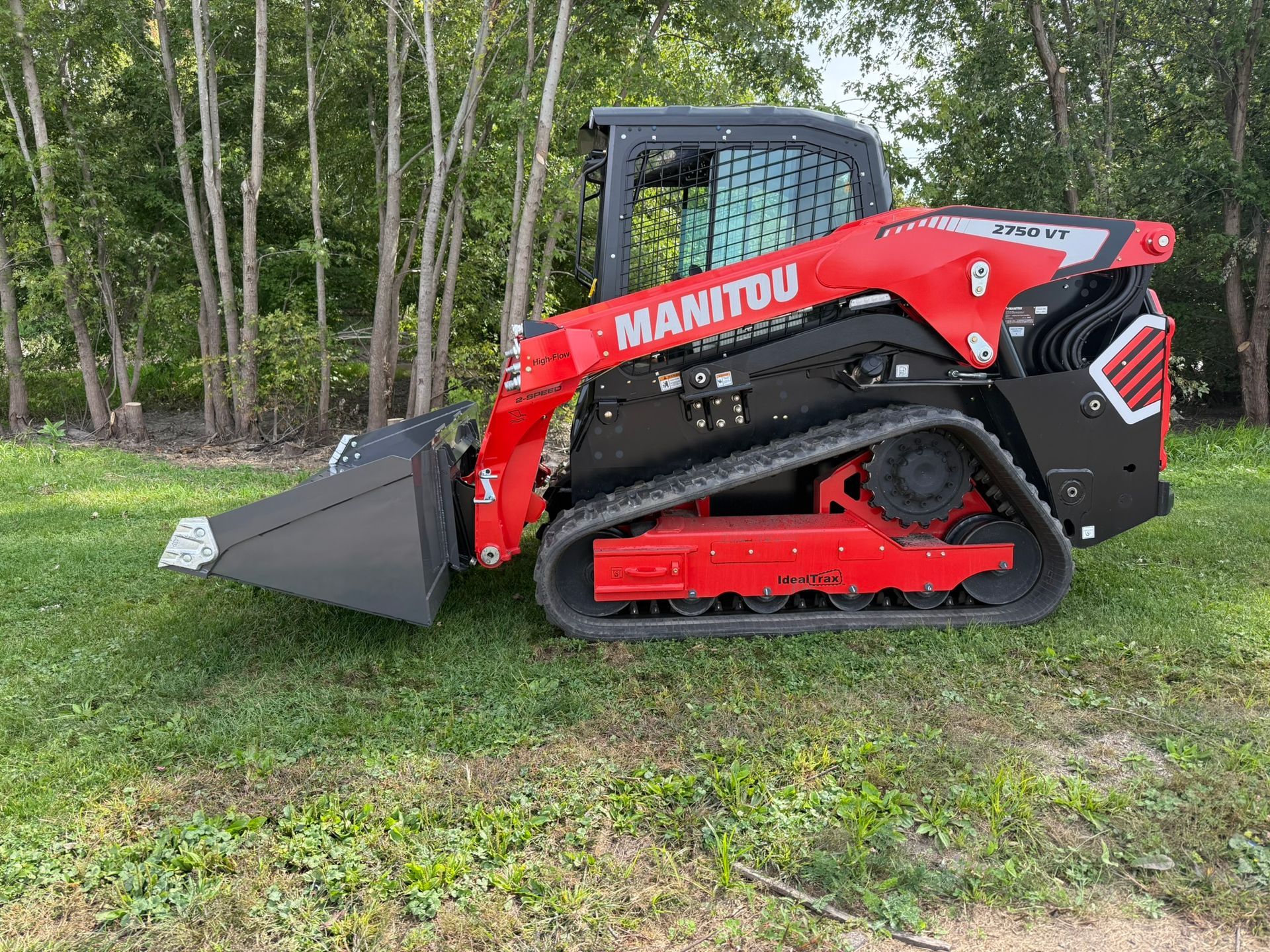

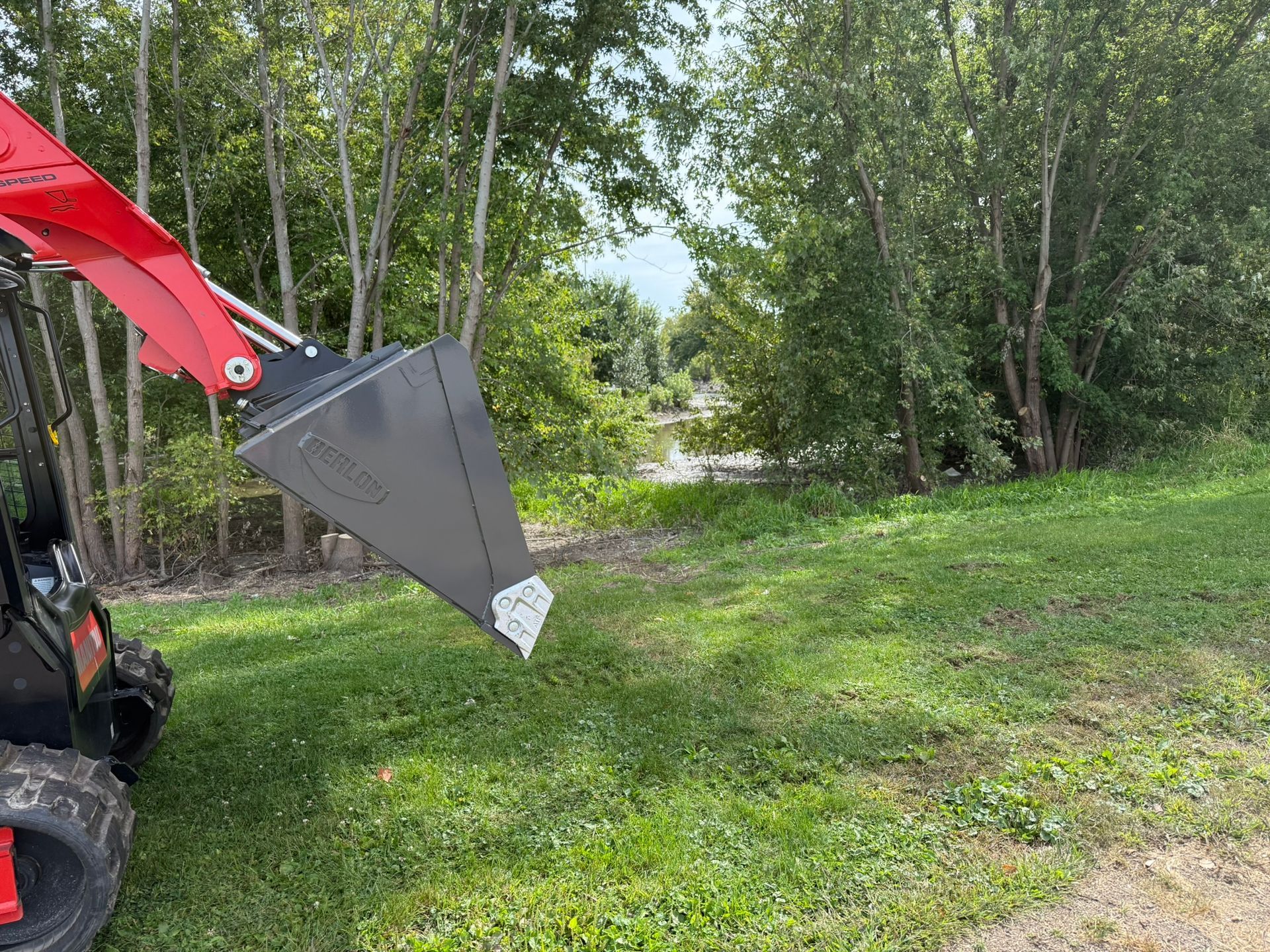

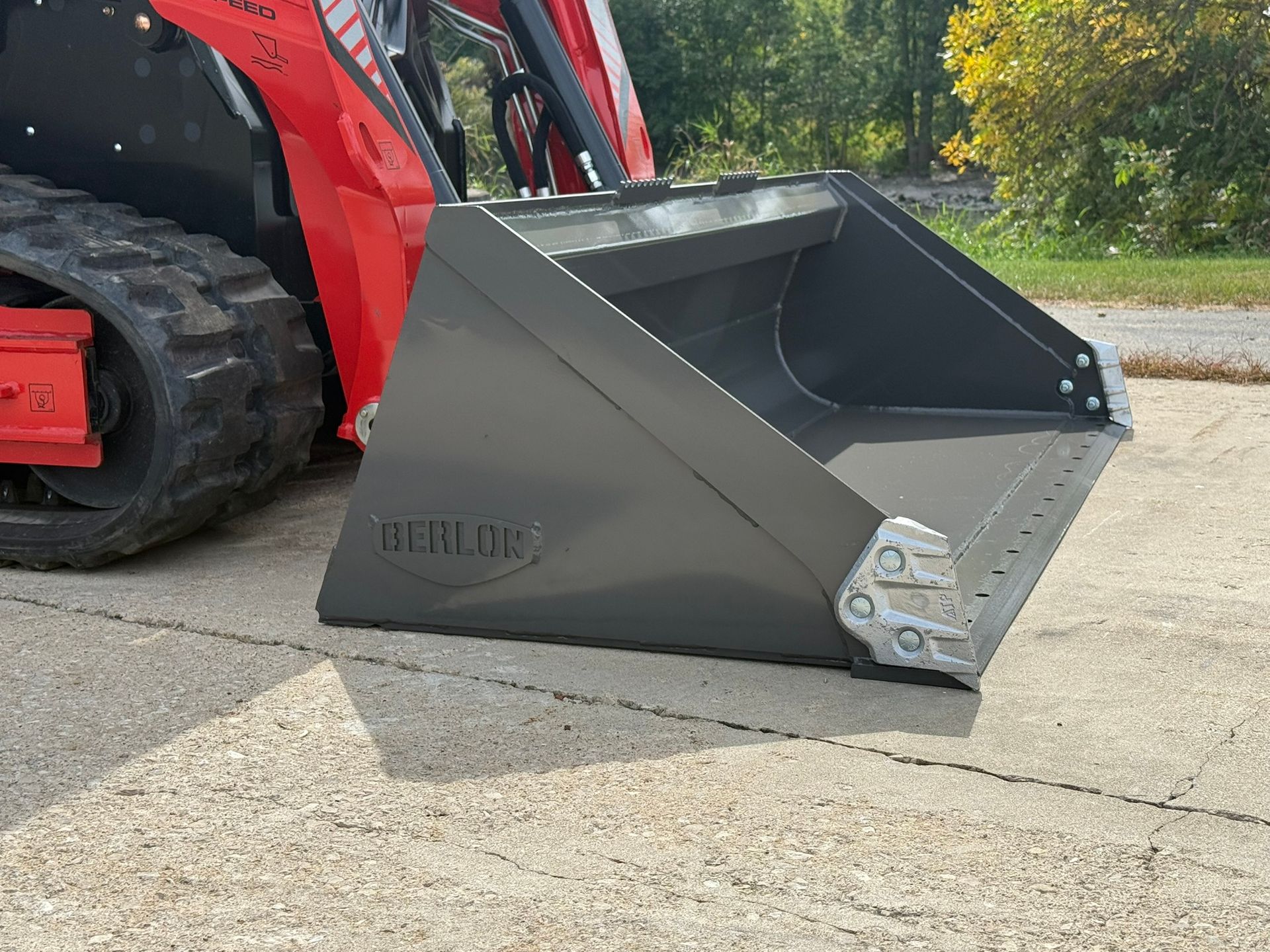

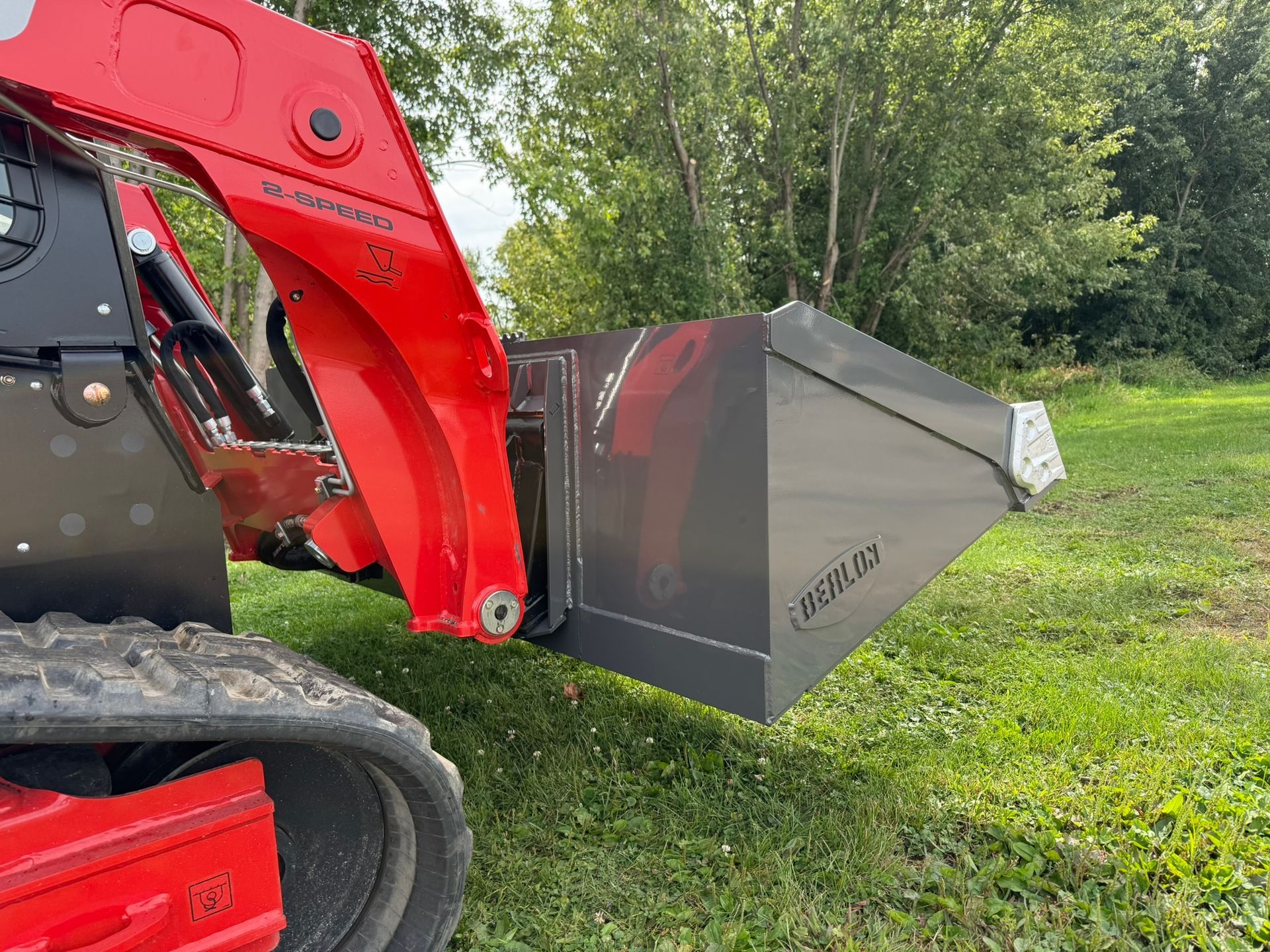

Heavy Duty Grading Bucket

Tough, precise, and built to last. Reinforced with wear plates and bottom wear bars, this bucket is ready for the heaviest grading jobs. The extended lip profile gives operators better visibility to the cutting edge for smooth, accurate back dragging. A universal skid steer mount makes it easy to hook up and get to work.

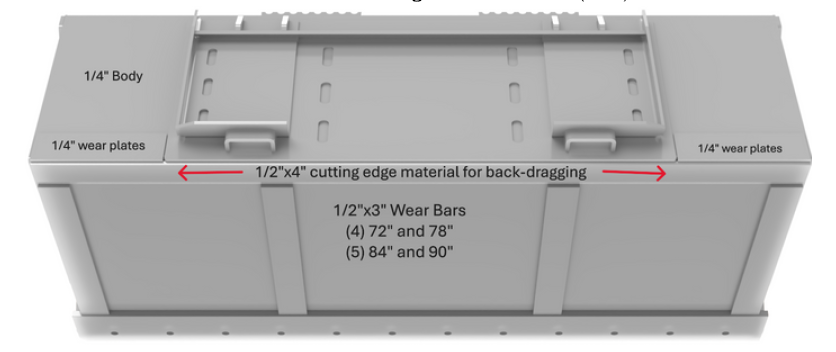

Reinforced cutting edge material for long-lasting

performance

Heavy-duty wear plates for added durability

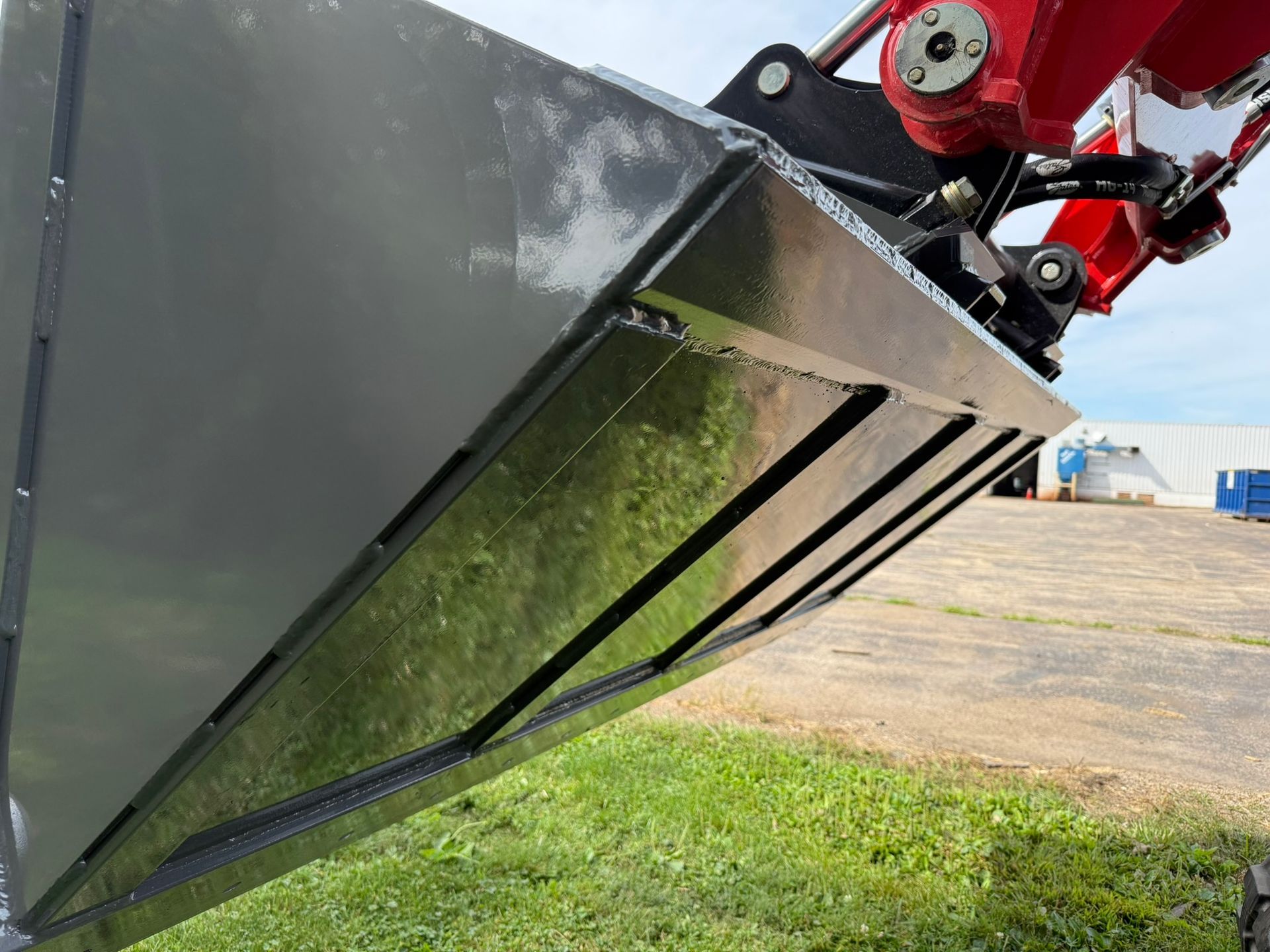

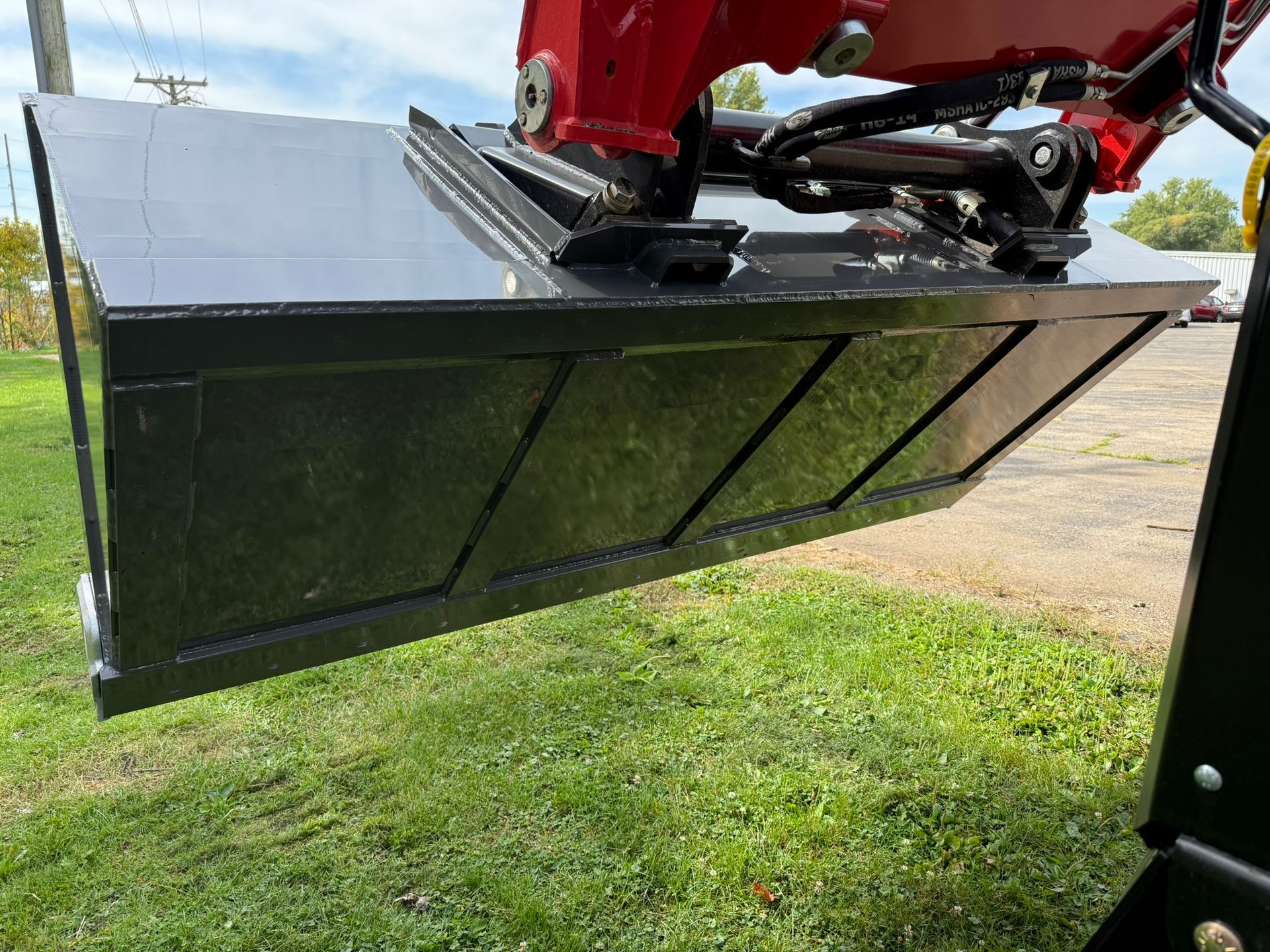

Wear bars along the bottom to extend bucket life

Universal skid steer mount for quick and easy

attachment

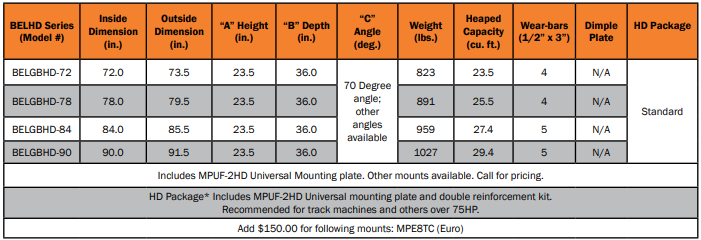

Specifications

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity

Material Weights
