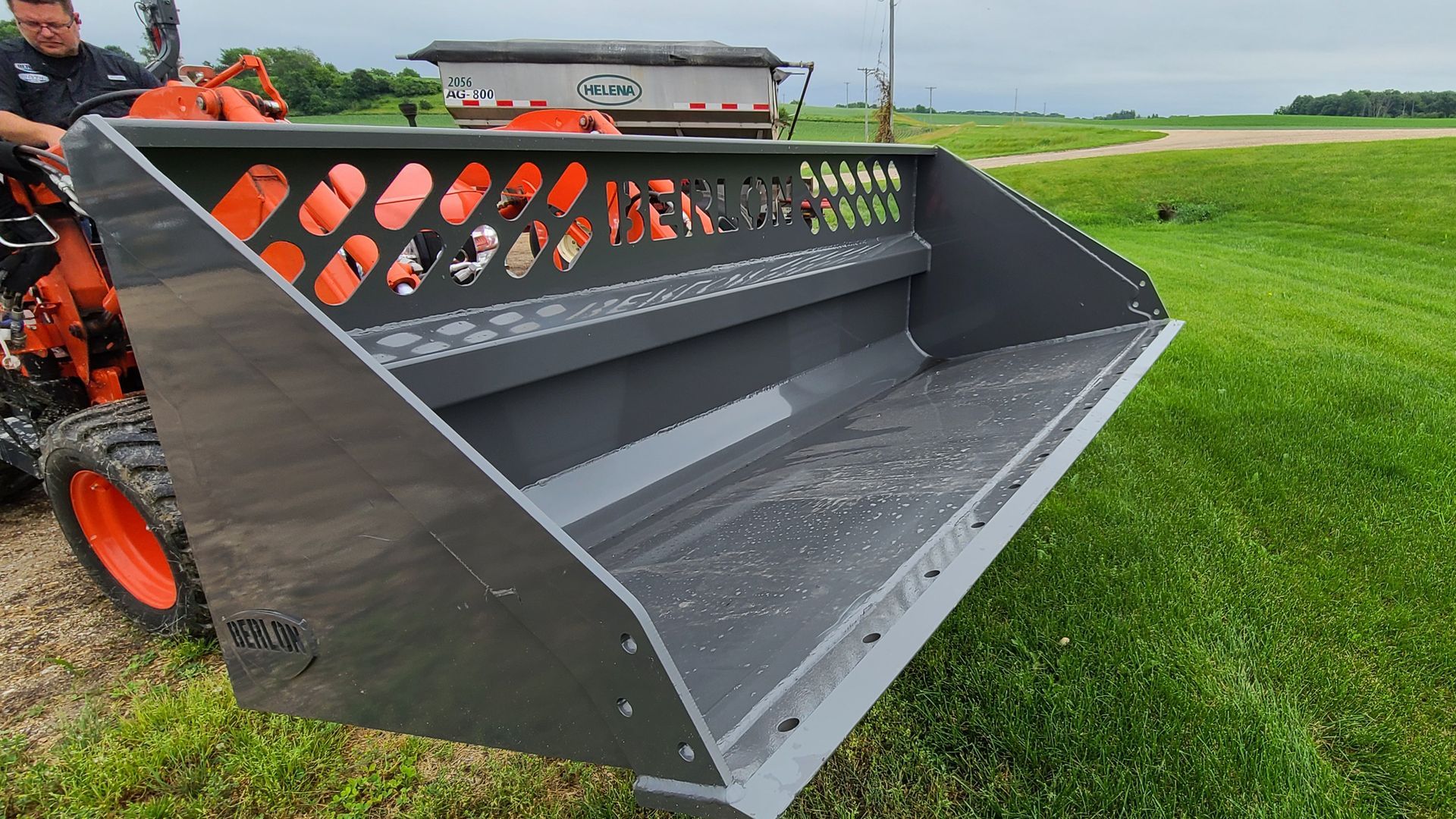

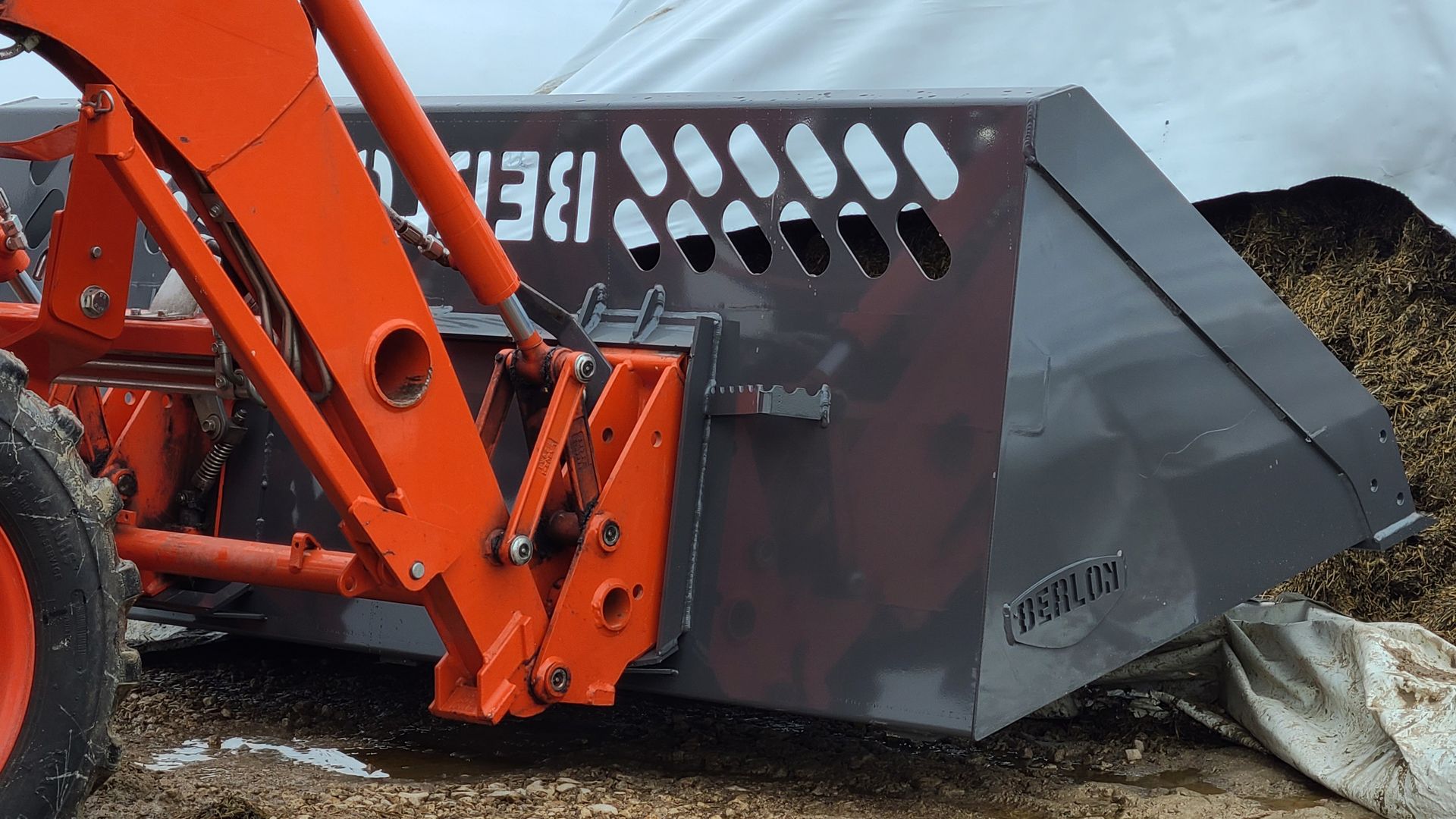

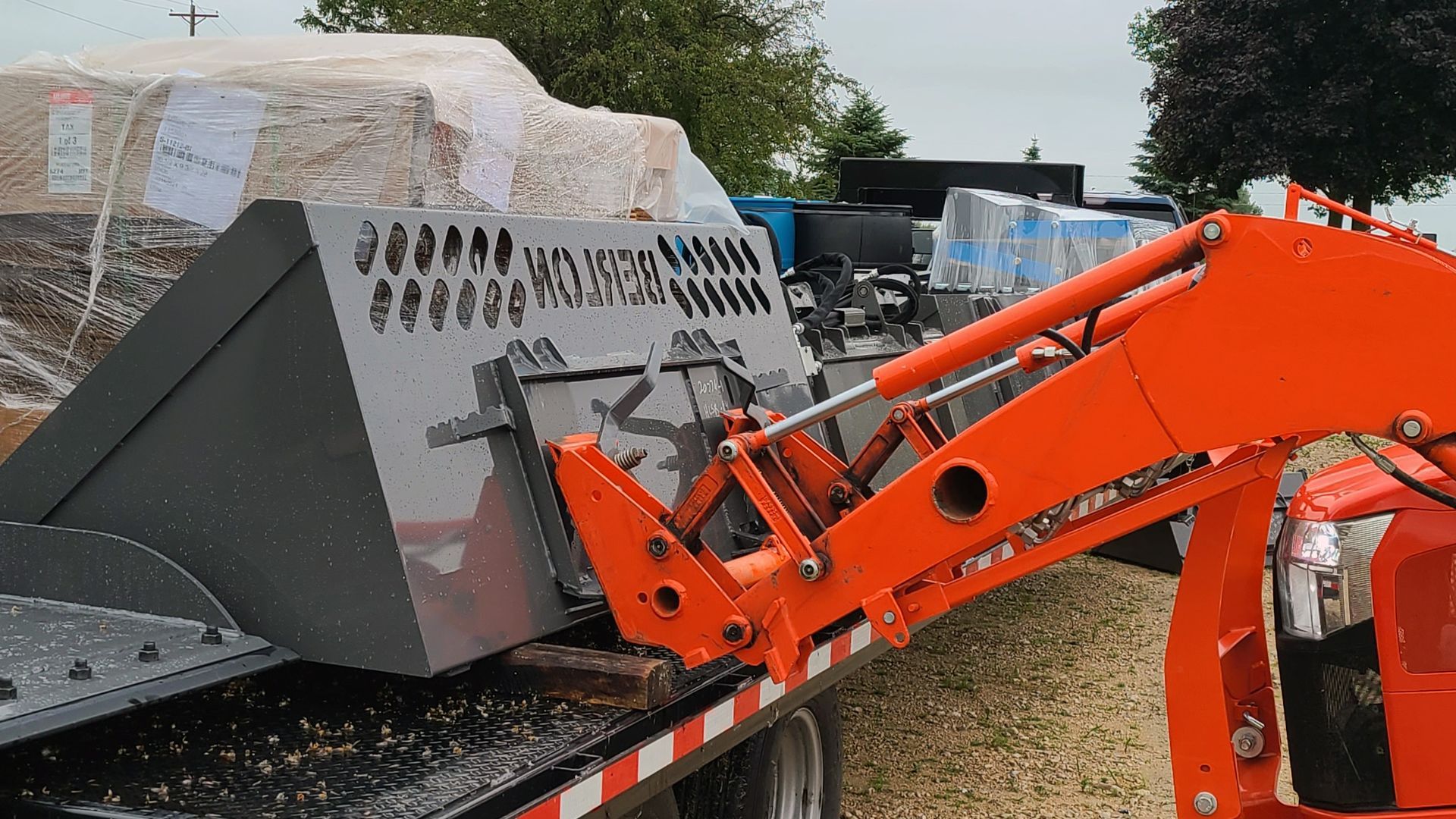

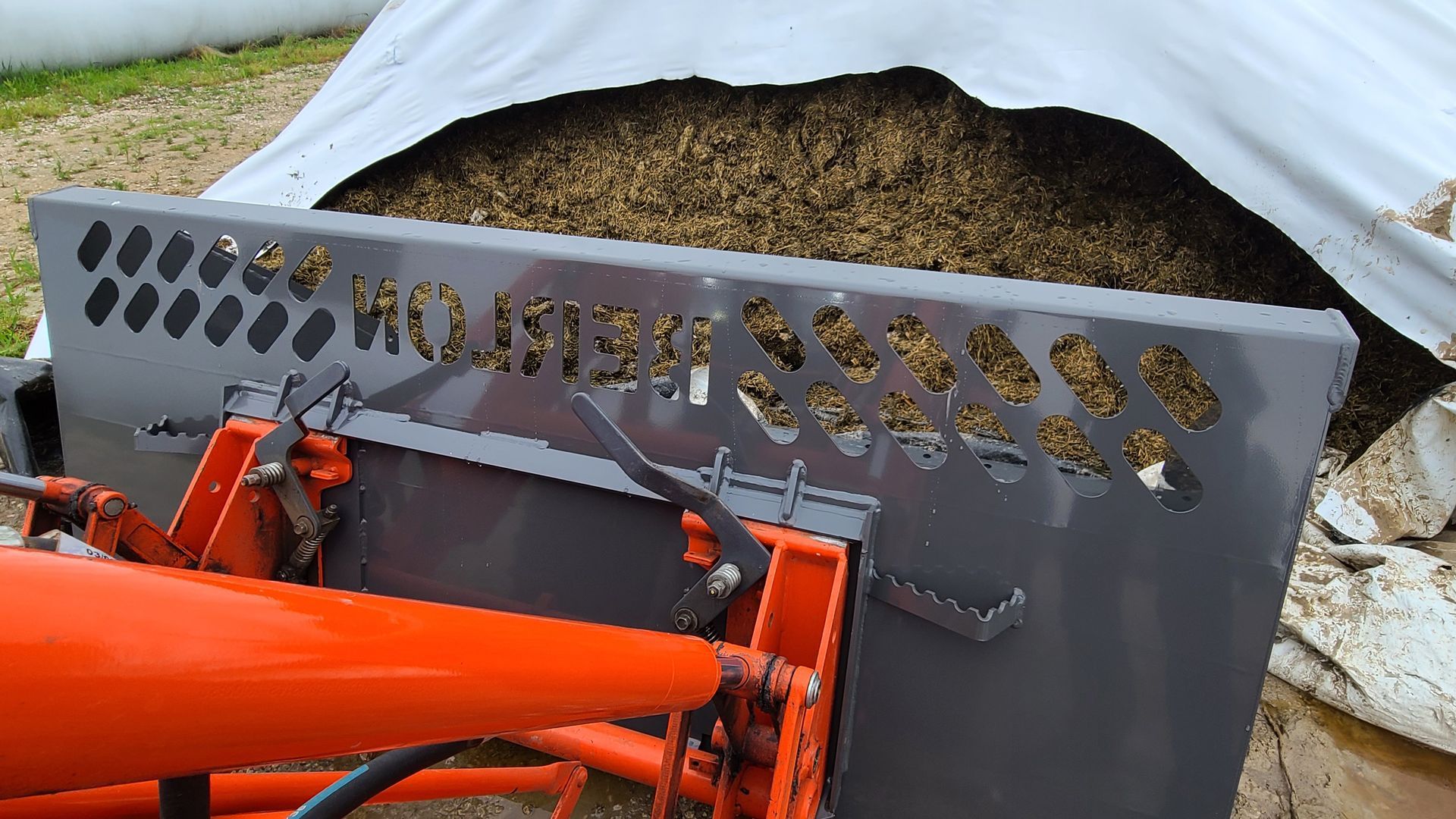

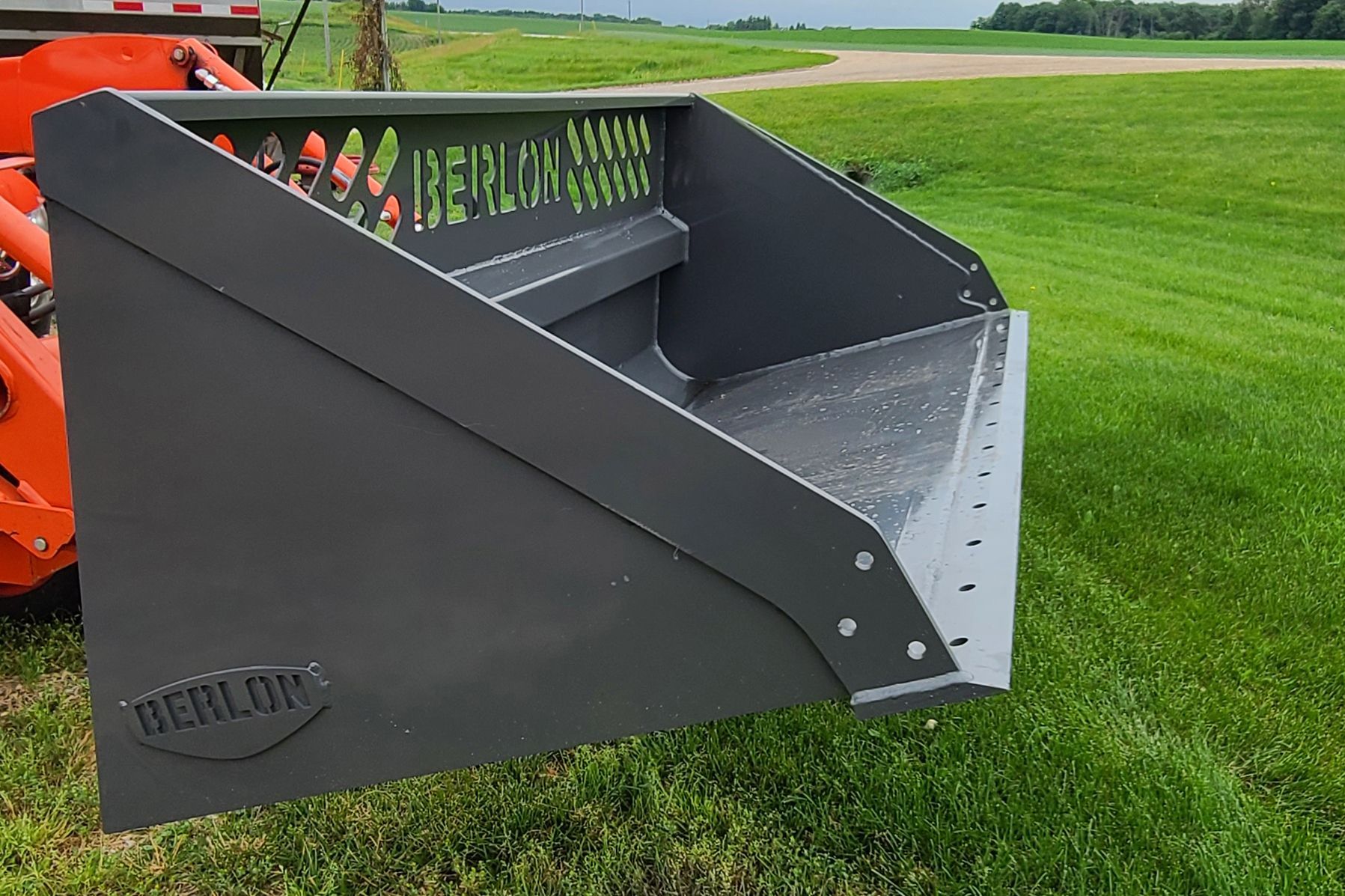

High Capacity Snow Bucket
Berlon’s High Capacity Snow bucket is ideal for loading and handling snow and other materials. This bucket offers viewing slots for greater cutting edge visibility.
Common uses include: Snow and other materials.
3/16” thick steel body
Radius kick-out plate for added strength and easy clean-out
3/4” x 6” weld-on cutting edge with holes

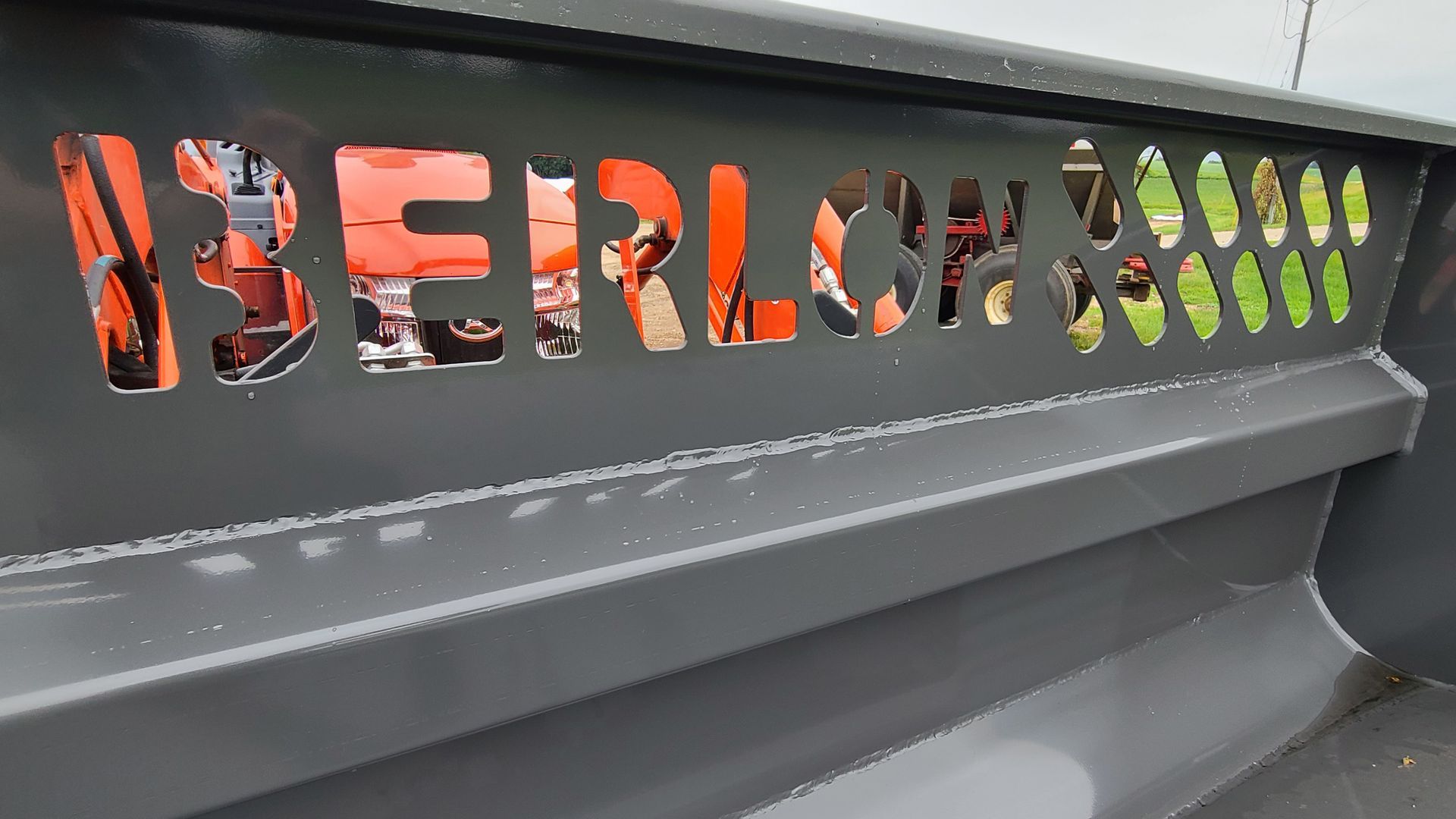

Reinforcement tube across back of bucket for added strength

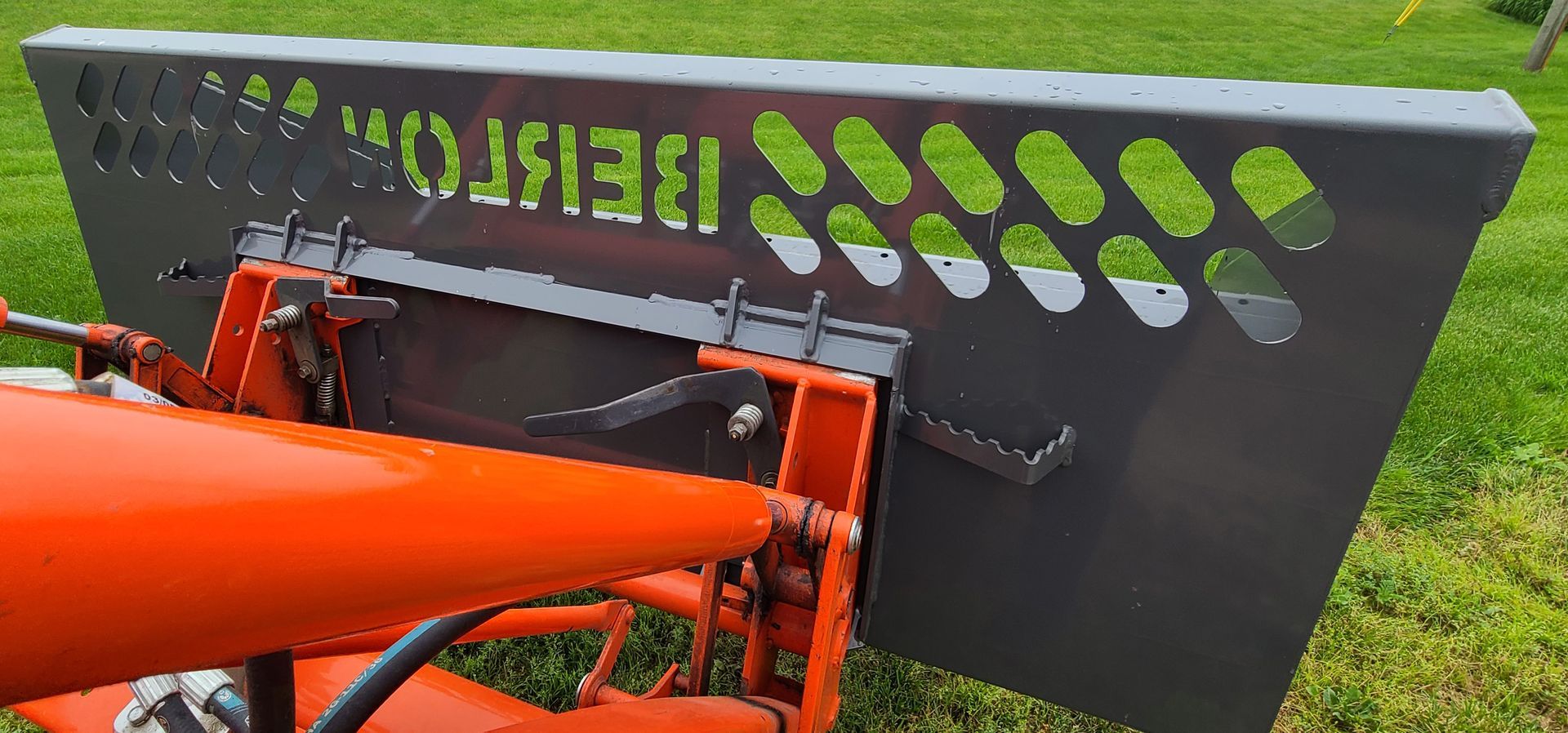

2” x 4-1/2” viewing slots for greater visibility
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Poly Edge
- Bolt-On Side Cutters
- Change Back Angle Add $135.00
Manufacturer's Limited Warranty

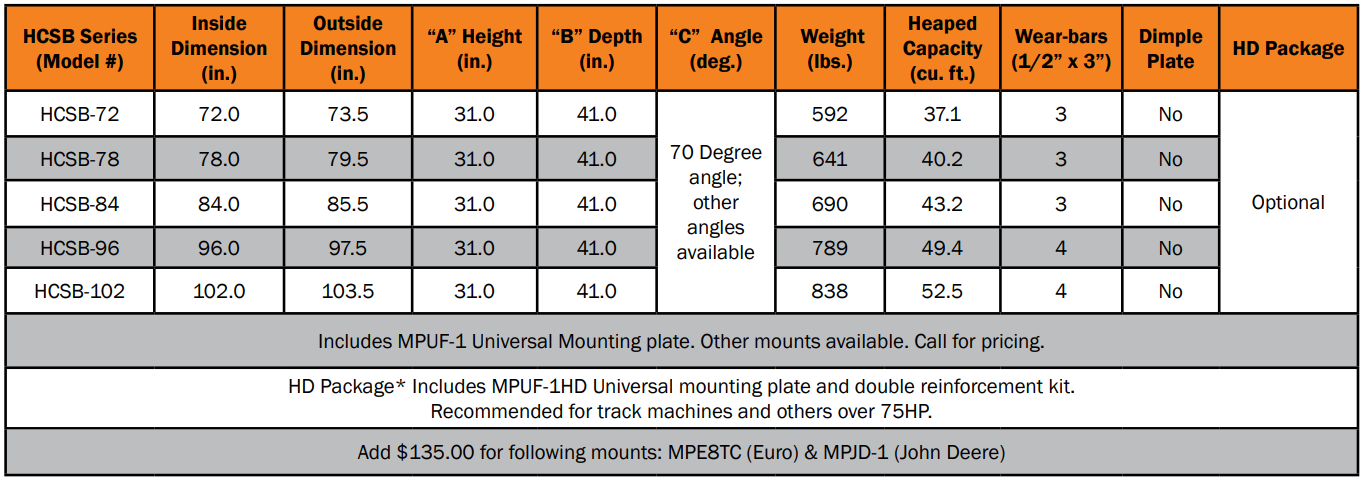

Specifications
How to Determine Bucket Capacity
The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.
To calculate cubic feet of a bucket:
1: Measure from the top of the bucket straight down to the bottom in inches = Height
2: Measure from the front of the floor to the back in inches = Depth
3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)
To calculate heaped capacity of a bucket:
For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity
For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
Material Weights
