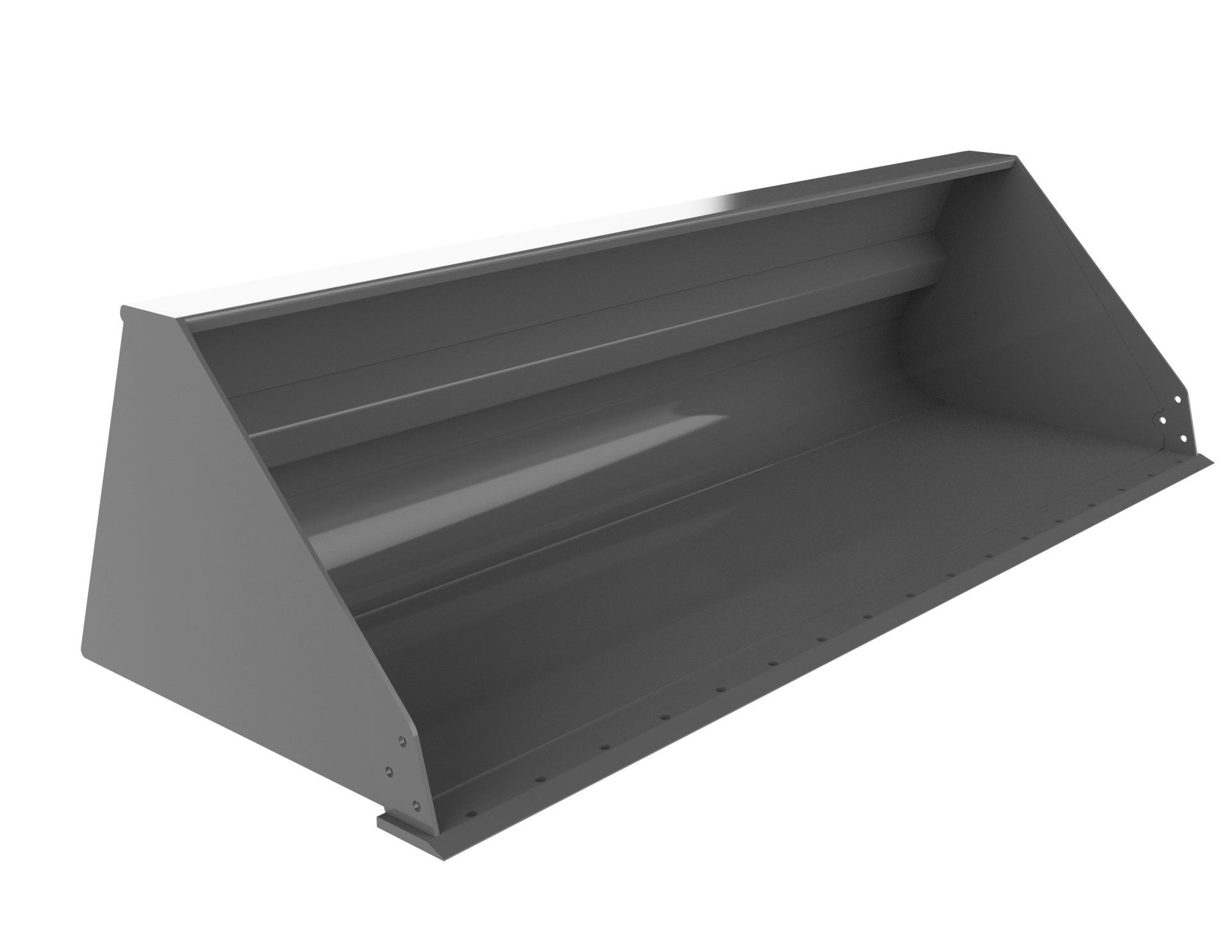

High Volume Material Bucket

Berlon’s High Volume Material bucket is ideal for use on the farm, handling livestock feed, digging out bag silage, snow removal, landscaping and

other high volume applications.

Common uses include: Feed, snow, digging out bag silage, landscaping and farm use.

3/16” thick steel body

Reinforcement tube across back of bucket for added strength

3/4” x 6” weld-on cutting edge with holes

Combined SLMB, MDHV and HDHV Series

Radius kick-out plate for added strength and easy clean-out

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.

To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)

To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
