Low Profile Extended Lip Bucket
Berlon’s Low Profile Extended Lip bucket provides greater cutting edge visibility and increased capacity. This is our most popular bucket and is recommended for
New Holland and John Deere skid steers.
Common uses include: Excavating, landscaping, construction and general purpose.
3” deeper than our B series bucket, for even greater cutting edge visibility
Radius kick-out plate for added strength and easy clean-out
3/16” thick steel body
Reinforcement tube across back of bucket for added strength
3/4” x 6” weld-on cutting edge with holes
Bucket bottom includes a heavy-duty dimple plate
*A Berlon Exclusive*
Options
Manufacturer's Limited Warranty

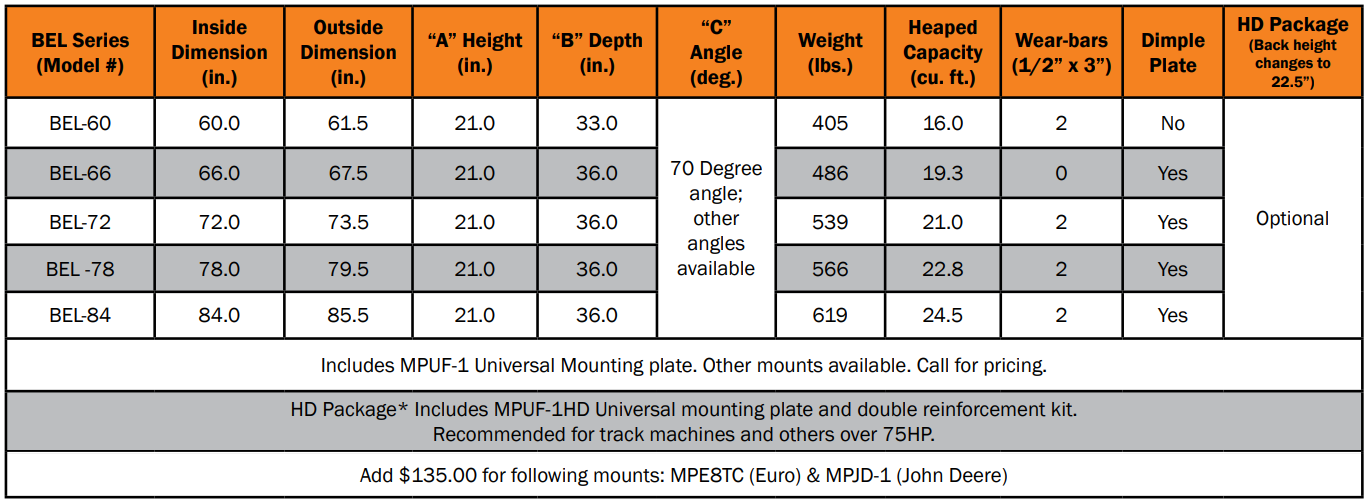

Specifications
How to Determine Bucket Capacity
The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.
To calculate cubic feet of a bucket:
1: Measure from the top of the bucket straight down to the bottom in inches = Height
2: Measure from the front of the floor to the back in inches = Depth
3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)
To calculate heaped capacity of a bucket:
For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity
For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
