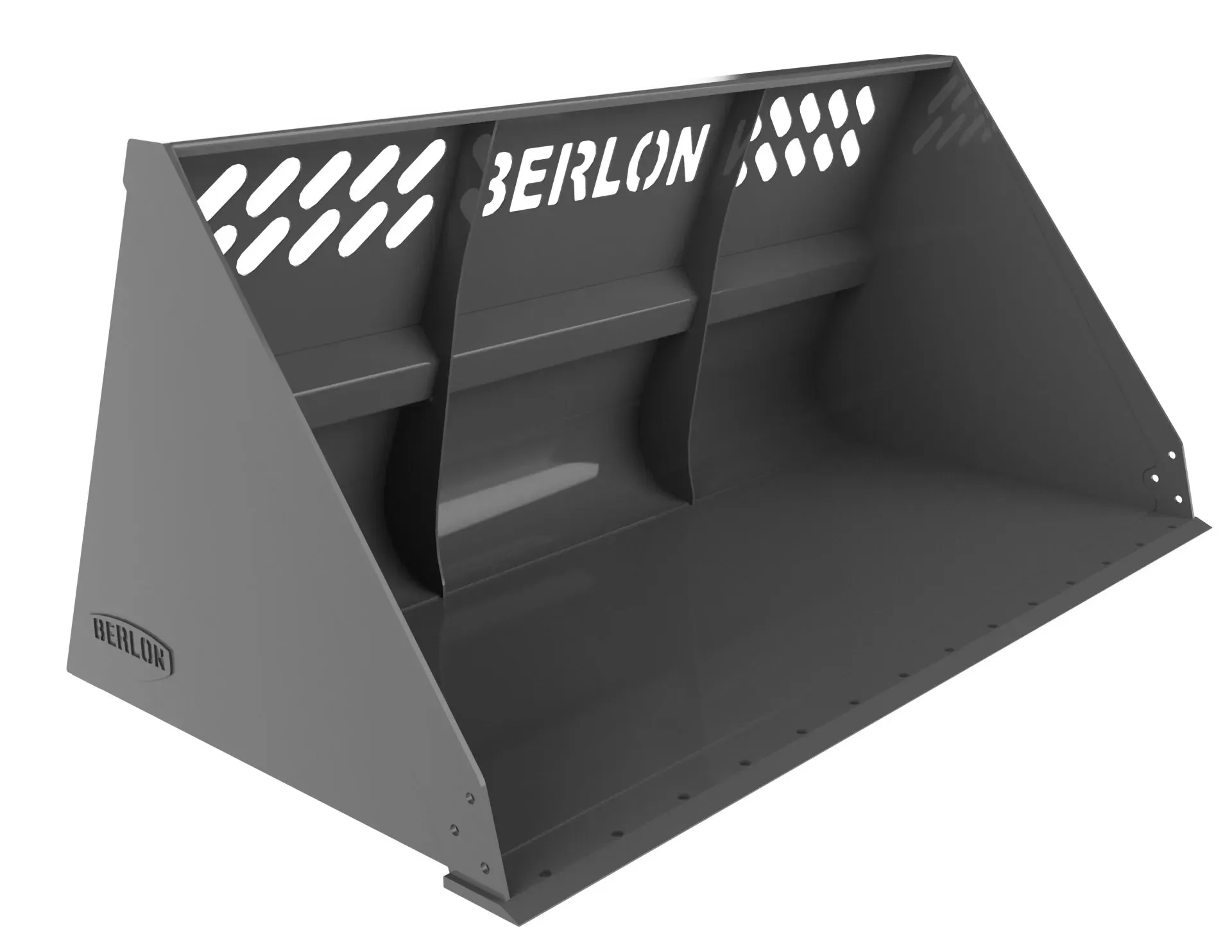

Super Capacity Snow Bucket
Berlon’s Super Capacity Snow Bucket is ideal for loading and handling large volumes of snow and other materials. Viewing slots for greater visibility.
Common uses include: Snow & other materials.
Fully welded body
Radius kick-out plate for added strength & easy clean out
1/2" x 3" wearbars
Reinforcement tube in line with the top of the mounting plate
3/4" x 6" cutting edge with holes
Additional reinforcement tube above standard rein
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Poly Edge
- Bolt-On Side Cutters
- Change Back Angle Add $135.00
Manufacturer's Limited Warranty

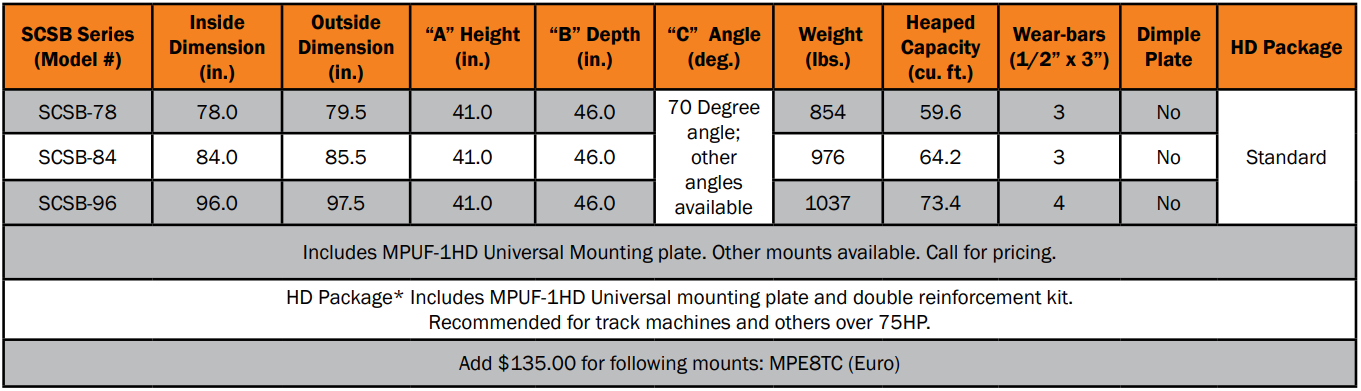

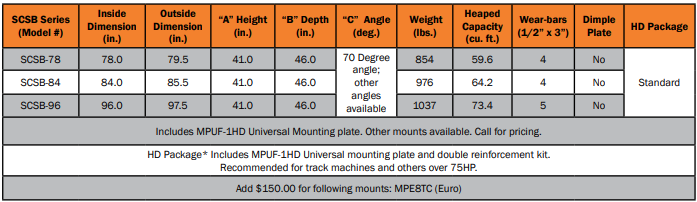

Specifications
How to Determine Bucket Capacity
The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.
To calculate cubic feet of a bucket:
1: Measure from the top of the bucket straight down to the bottom in inches = Height
2: Measure from the front of the floor to the back in inches = Depth
3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)
To calculate heaped capacity of a bucket:
For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity
For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
