Pallet Forks
All Berlon Pallet Forks are made in the USA and are available in load capacity from 2,500 lbs. to 10,000 lbs., classified as light duty, standard or heavy duty.
Ratings are based on a 24-inch load center, with a
3:1 safety factor.
Dealership Branding Opportunity
You can gain valuable exposure by having your dealership’s name plasma-cut into the brickguard. The personalized brickguard will serve as a constant reminder that your dealership is the preferred source for your customers’ attachment needs.
Class ll Light-Duty
Pallet Forks
Designed for small skid loaders and compact utility tractors
- Built light, yet rugged, to maximize lifting capacity
- Rated lifting capacity: 2,500 lbs.
- Hook spacing on forks: 16.25”

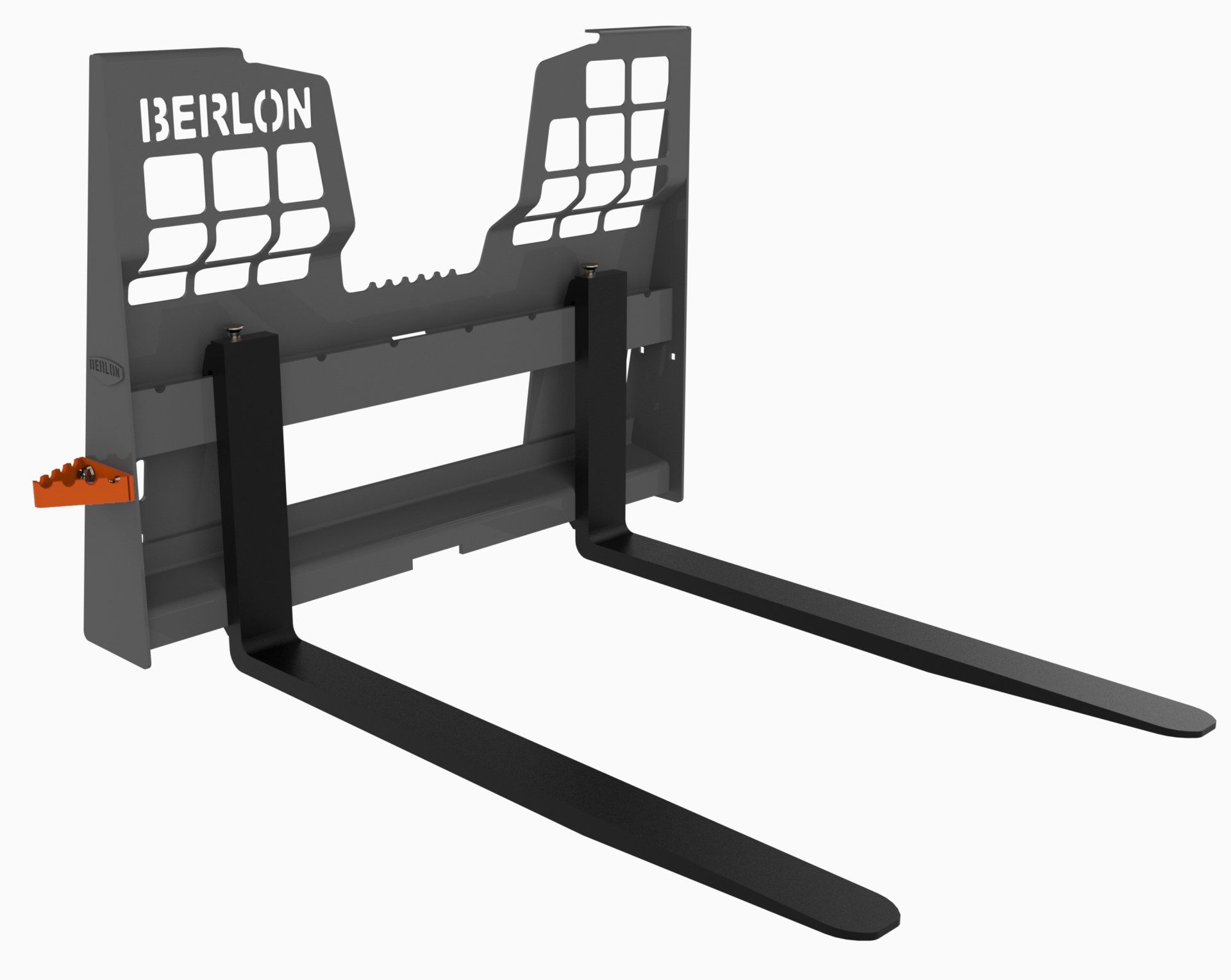

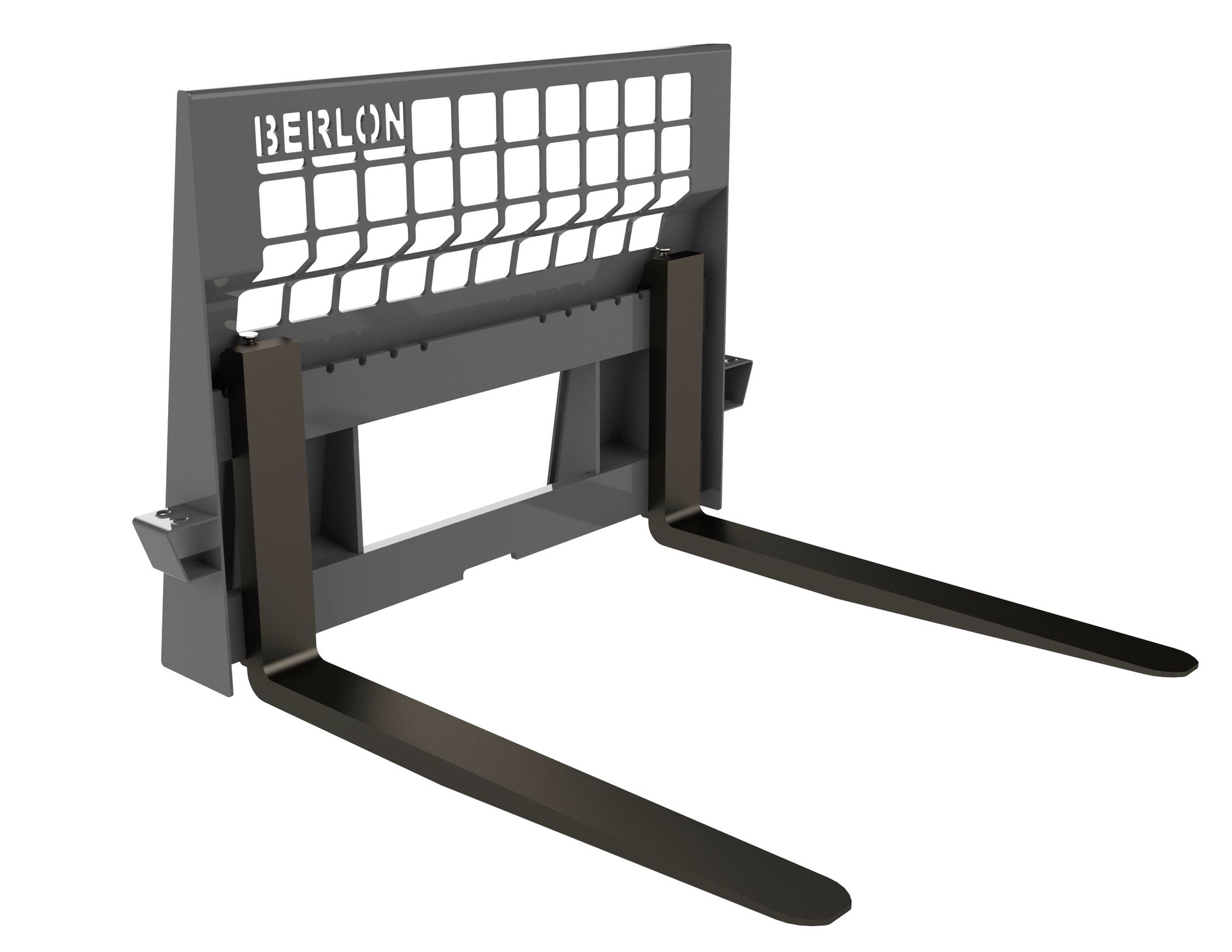

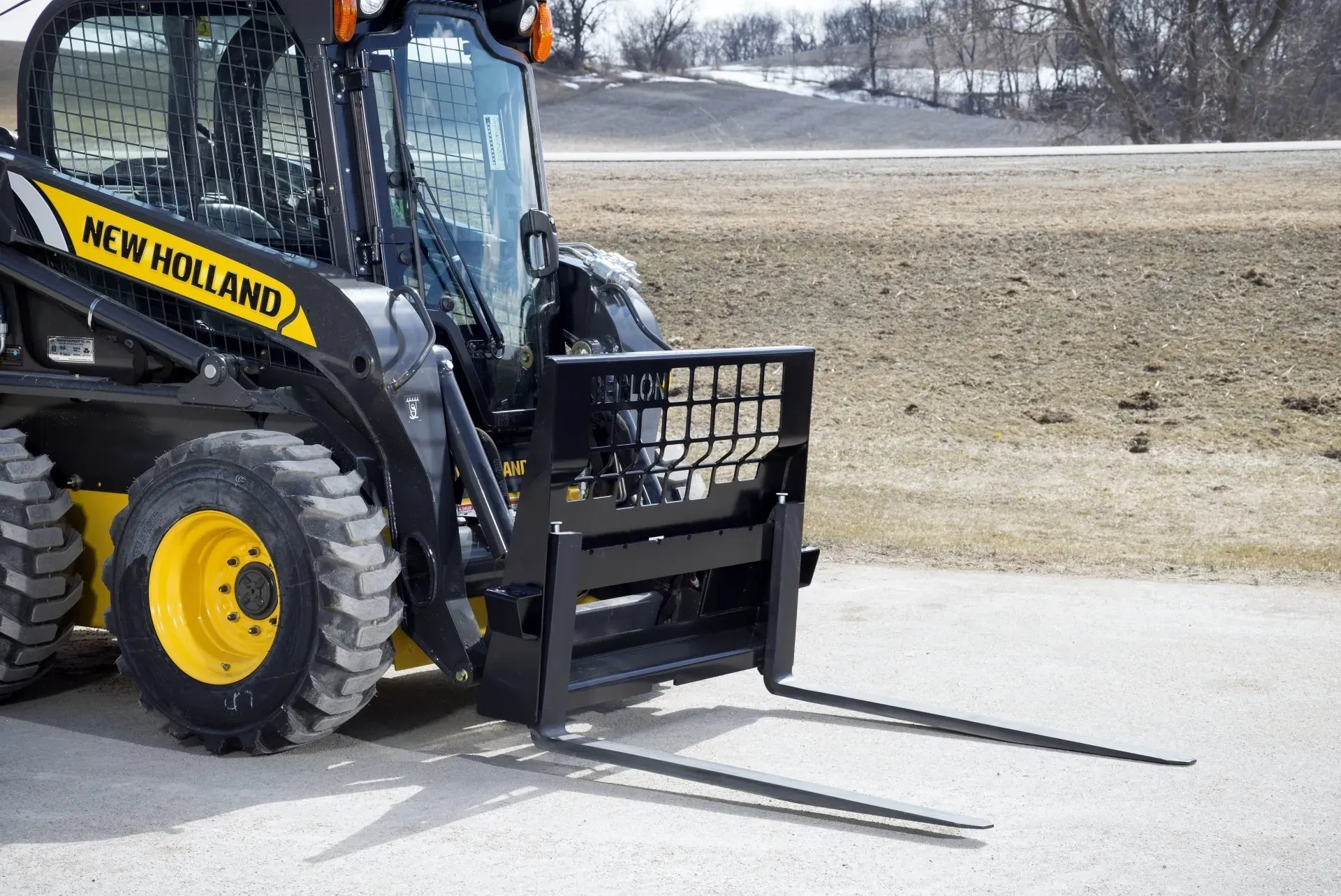

Class ll Medium-Duty
Pallet Forks
Our standard set of forks.
One of the heaviest brickguards on the market, designed for excellent operator visibility.
- Rated lifting capacity: 4,000 or 5,500 lbs.
- Hook spacing on forks: 16.25”

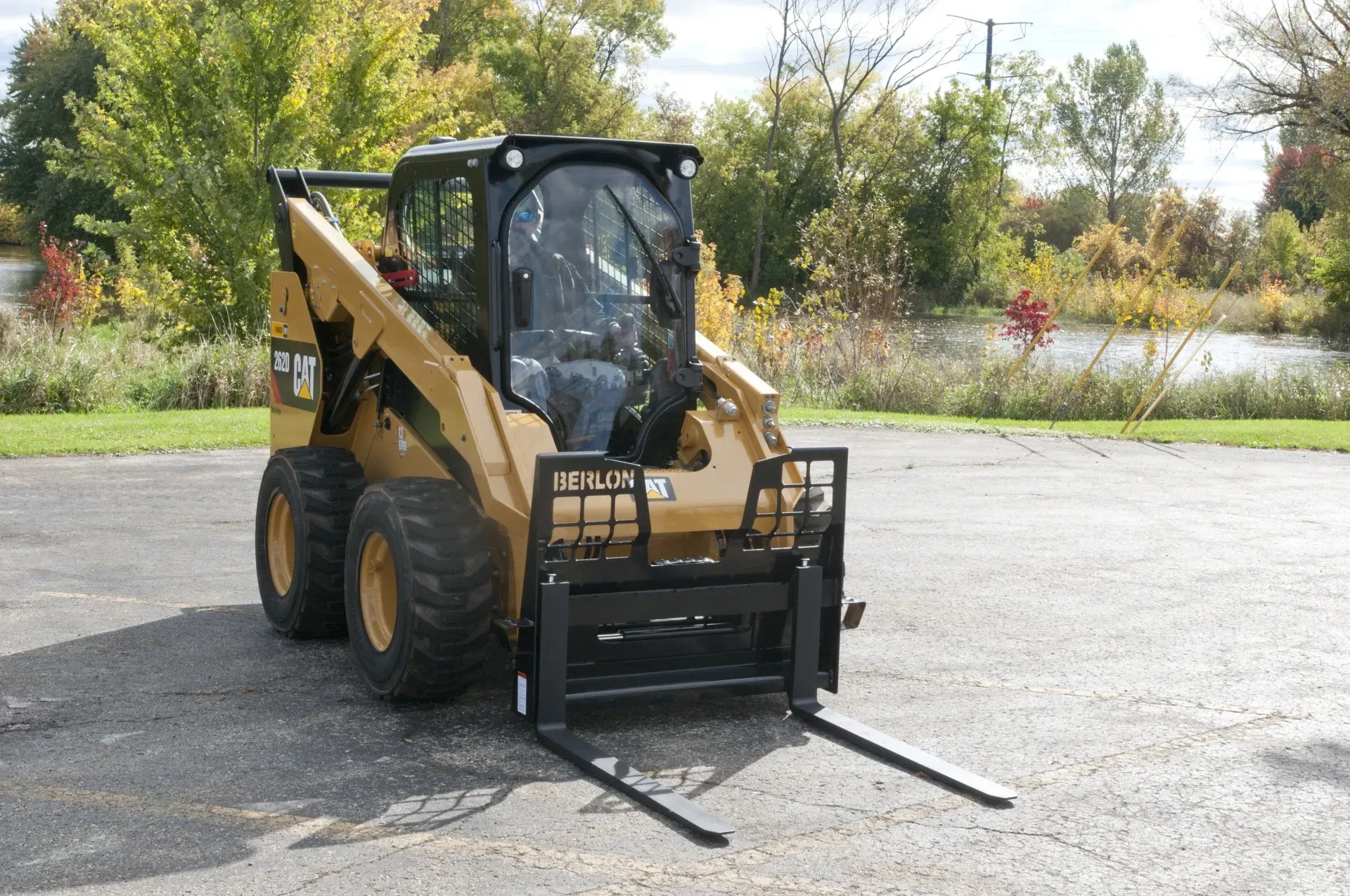

- Available with full or walk-through brickguard. The walk-through version has an opening tapered from 18” to 12” with a center step. Side steps are standard

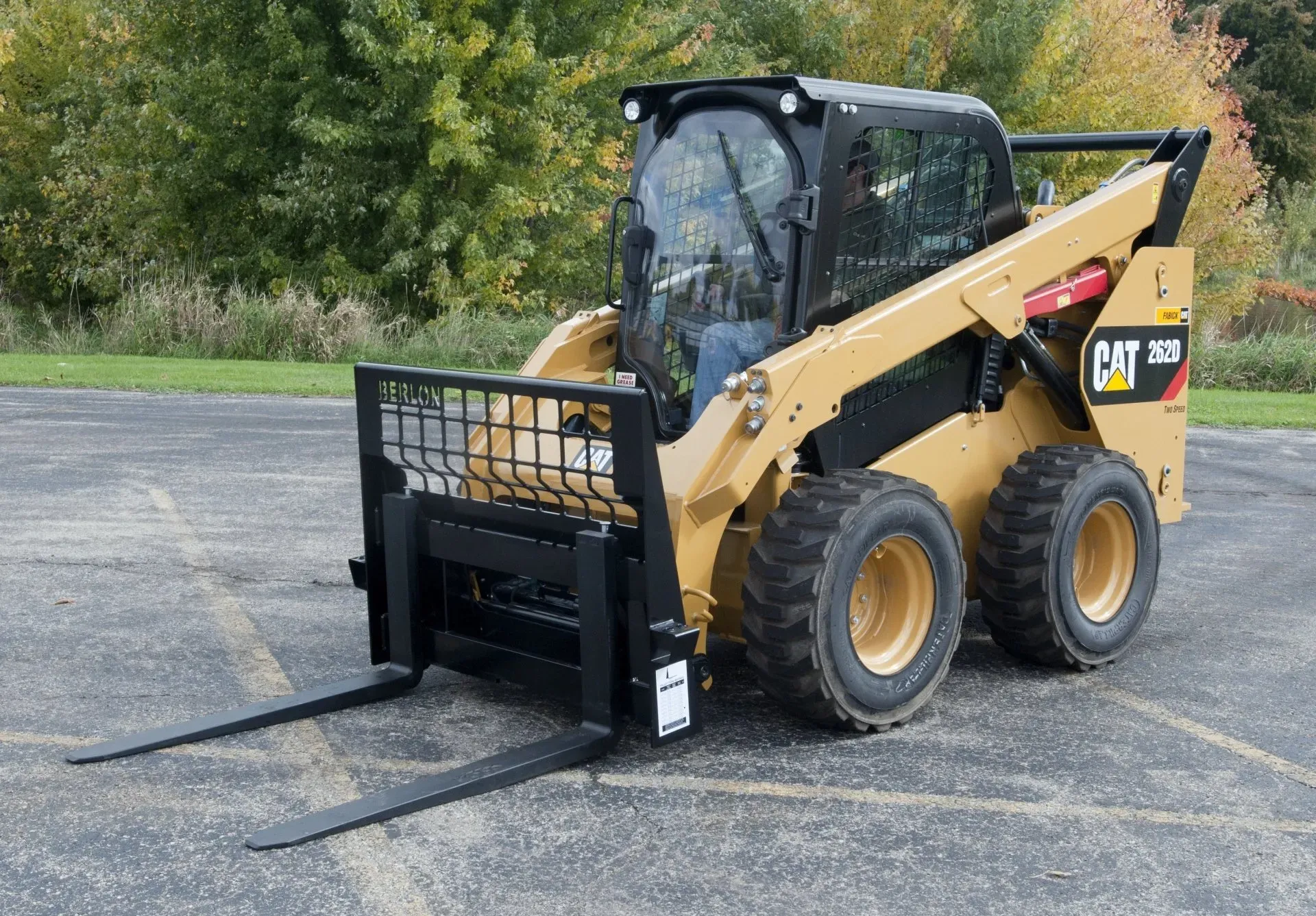

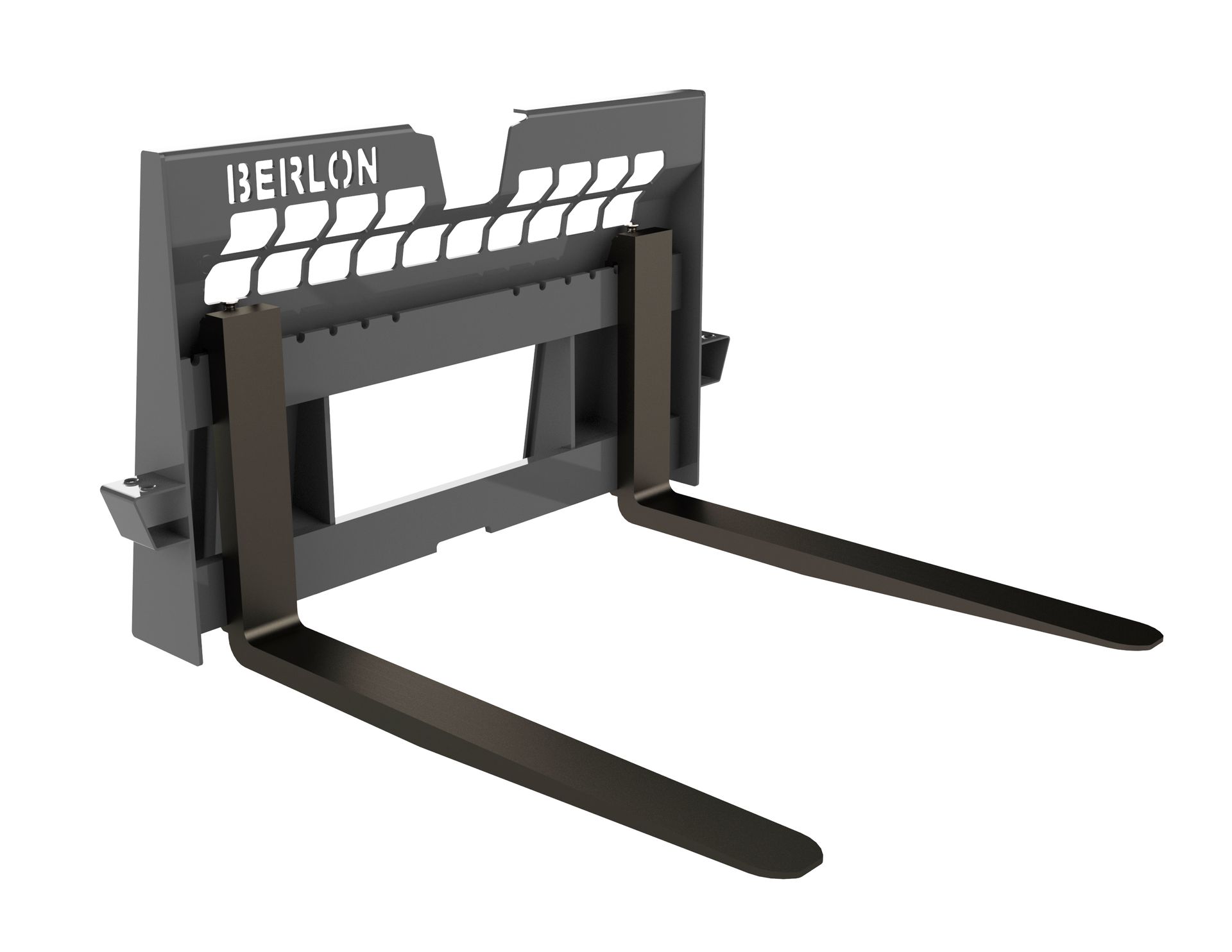

Class III Heavy-Duty
Pallet Forks

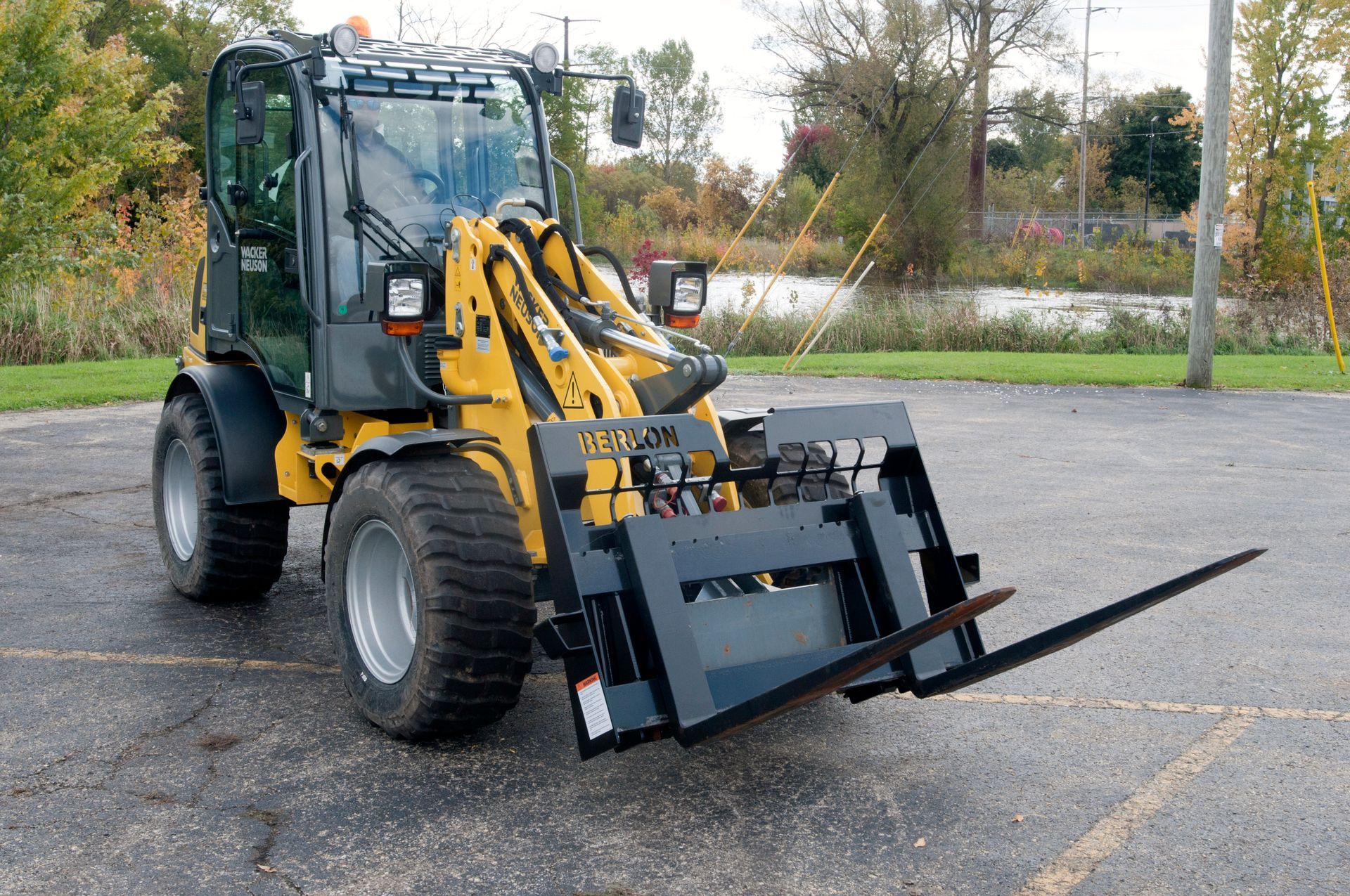

For larger machines with greater lifting capacities. Available in standard or low profile brickguards, which is designed
for compact wheel loaders
with Z-Bar linkage.
- Rated lifting capacity: 10,000 lbs.
- Hook spacing on forks: 20.375”
All forks are forged, heat-treated and made in the USA
Heavy-duty formed steel brickguards provide excellent operator protection and visibility
Forks have fully tapered ends for easy entry and include spring-loaded positioning pins
All models include universal mounting plate. Other mounts are available
